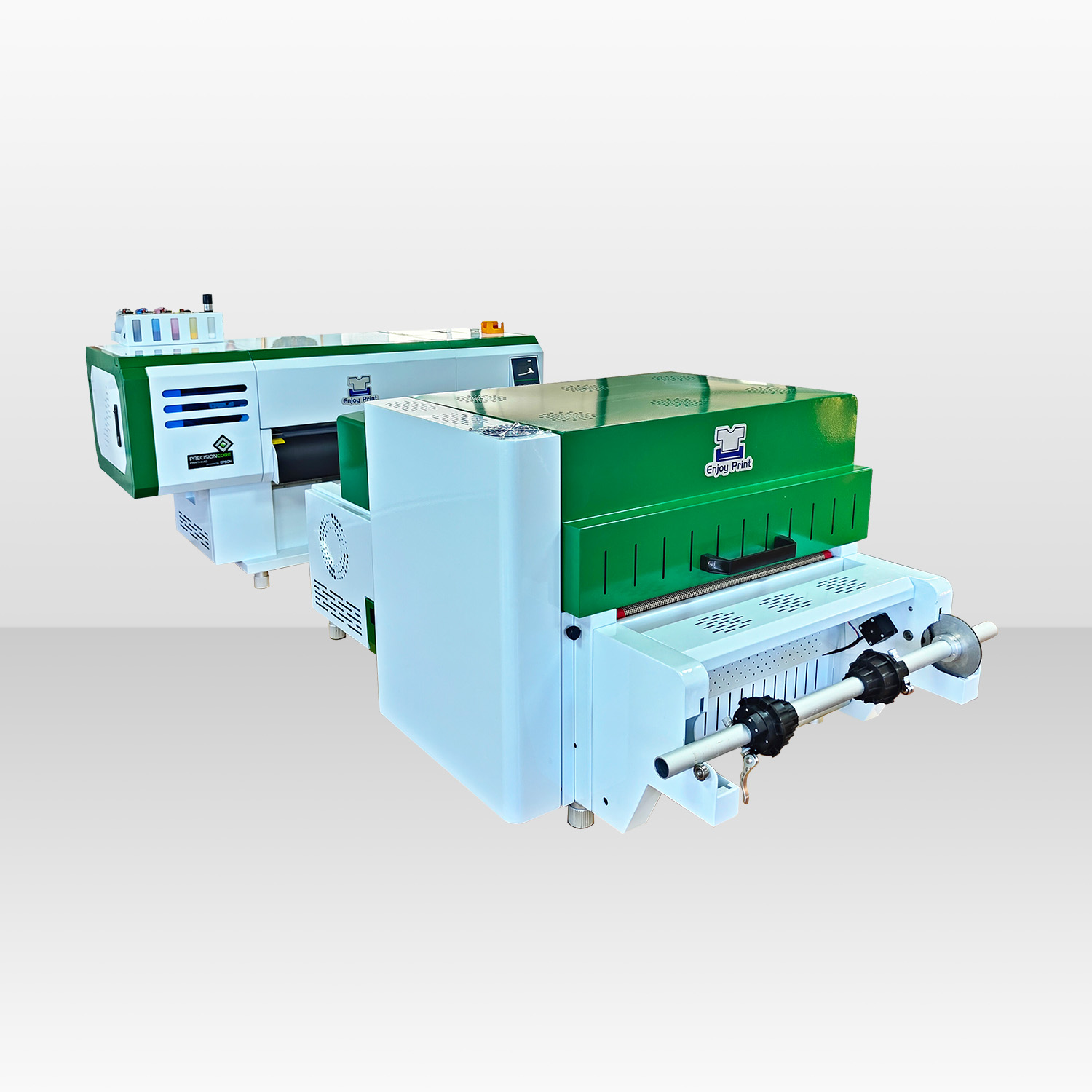

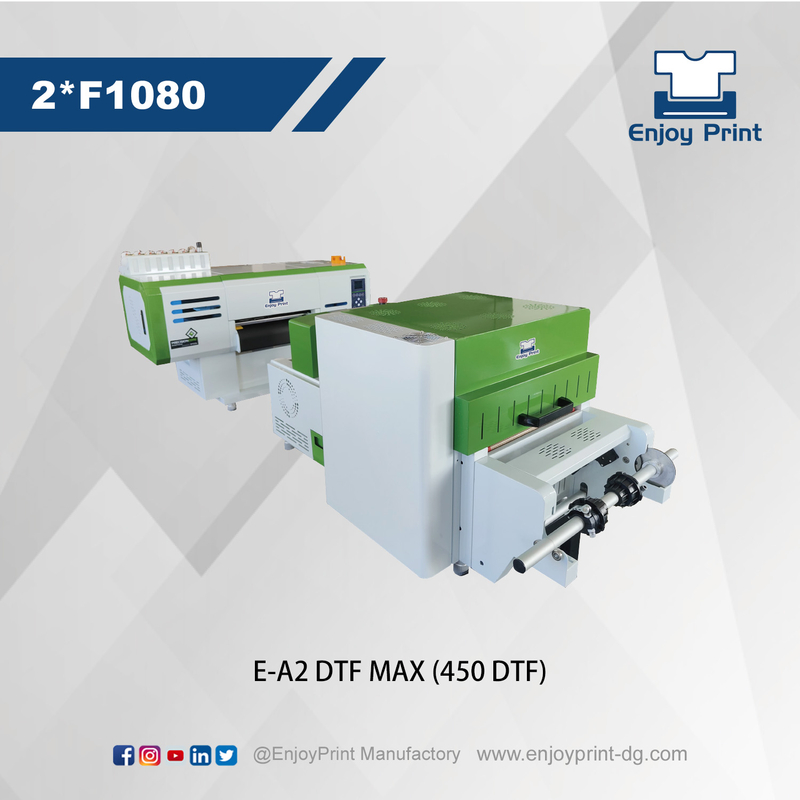

E-A2 Mini420 DTF Film Printing Machine A2 DTF (2*F1080) Enjoyprint

Special Width Direct to Film Comprehensive Solution (DTF)

Parameter
Print Head: 2*i1600&i3200&F1080 Optional
Max Print Size: ≤ 430 mm
Colors : 2*F1080:6 Colors 2*i1600/i3200:4 Colors i3200(8)-A1HD+i1600-A1:8 Colors
Printing Ink ：Transfer Pigment Ink
Board : Hoson Board
Print speed：

720x900dpi - 6pass 8sqm/h，720x1200dpi - 8pass 6sqm/h（Dual *i1600）

360x1080dpi - 6pass 5sqm/h，360x1440dpi - 8pass 4sqm/h（Dual *F1080）

Feature
Digital PET Film Printing Machine with Powder Shaking integrates vinyl powder coating and drying into one machine. When the film/vinyl is dried out, it can be used to transfer print onto the garment.

1.Upgraded LCD touch screen, intelligent control
2.Upgrade the automatic moisturizing system to extend the service life of the heads
3.The electric push rod replaces the gear set and provides a more stable paper feeding
4.Upgraded three colors light to detect the working status of equipment in real time
5.waste ink alarm enables unmanned production operations

Availability:



Inquiry Add to Basket PDF Export

Model:
E-A2 MAX (2*F1080)
Brand:
Enjoyprint

Printer Heads

Epson Inkjet Head F1080

Authorized Epson F1080 Printhead, specifically designed for DTF printers:

Enhanced Printing Performance: The F1080 / XP600 printhead is engineered by Epson to deliver exceptional print quality and vibrant colors. With its advanced technology and precise ink droplet placement, it enables sharp details and smooth gradients, resulting in professional-level prints.

Genuine Epson Product: Epson printheads ensure compatibility, reliability, and consistent performance. By using the authentic Epson F1080 / XP600 printhead, you can trust in its quality and compatibility with your DTF printer.

The Genuine Epson F1080 Printhead, designed to deliver exceptional print quality and reliable performance. Enjoy the benefits of using an authentic Epson product and unleash the full potential of your DTF printer for outstanding prints.

Product Specifications:
Product name	F1080
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead
WidthxDepthxHeight	84.9 x 57.2 x 46.2 mm
Number of Nozzle	1080
Nozzle pitch/nozzle row	1/180 inch
Nozzle rows	6 rows
Nozzle Resolution	180 npi /row 360 npi/2 rows
Max. number of colour inks	6 colours
Droplet volumes	4.5,9，20，40 pl (Multi mode)

Epson Inkjet Head i1600-A1

1.PrecisionCore Technology

a. MEMS manufacturing and thin film piezo technology enable high precision and a high nozzle density, creating compact, high-speed, high-quality print heads with excellent image quality.

b. Epsonʼs unique precision MEMS nozzles and ink flow path, ensure that perfectly round ink droplets are placed accurately and consistently.

2. Support for grey-scale

Epsonʼs unique Variable Sized Droplet Technology (VSDT) delivers smooth graduations by ejecting droplets of different volumes.

3. High resolution

Ink ejection of up to 4 colours realizes with high resolution (600 dpi/colour). In addition to the i3200, i1600 has also been added to the lineup to meet various customers' needs.

4. High durability

PrecisionCore print heads have proven durability and extended service life demonstrated by Epsonʼs own industrial printers.

Product Specifications:
Product name	i1600-A1
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead
WidthxDepthxHeight	69.1x 59.5x 35.6 mm
Number of Nozzle	1600
Nozzle pitch/nozzle row	1/300 inch
Nozzle rows	4 rows
Nozzle Resolution	300 npi /row 600 npi/2 rows
Max. number of colour inks	4 colours
Effective print width	33.8 mm (1.33 inches)

Epson Inkjet Head i3200（8）-A1HD

1.PrecisionCore technology

The ALL MEMS (Microelectromechanical Systems) manufacturing process and the use of thin-film piezoelectric components achieve high-precision output while maintaining high reliability and flexibility

2. Super cost-effective

The cost-effective 1,200dpi printhead reduces the cost of the printing unit in the industrial field where multi-head applications are widespread.

3. 1200dpi

1,200dpi reaches the industry's highest resolution, creating superior photo quality.

4. Flexible color configuration

8 ink channels for more flexible color configurations, and more accurate drop drop drops using 4 adjacent channels for same-color inks.

Product Specifications:
Product name	i3200（8）-A1HD
Ink Type	Aqueous
WidthxDepthxHeight	69.1x 59.5x 36.7 mm
Number of Nozzle	3200
Nozzle pitch/nozzle row	1/300 inch
Nozzle rows	8 rows
Nozzle Resolution	300npi/row 600npi/2rows 1200npi/4rows
Max. number of colour inks	8 colours
Effective print width	33.8 mm (1.33 inches)

Technical Specifications

T-shirt Digital Heat Transfer Printing Machine
Model		E-A2 DTF MAX Powder Shaker
Print Head		2*i1600&i3200&F1080 Optional
Printing Technology		Micro Piezo Inkjet Printing
Acceptable Media	Width	450 mm
Acceptable Media	Material	PET Film
Printing Width		≤ 430 mm
Ink Cartridges	Type	Transfer Pigment Ink
Ink Cartridges	Color	2F1080:6 Colors 2i1600/i3200:4 Colors i3200(8)-A1HD+i1600-A1:8 Colors
Printing Accuracy		F1080 Print Head:1440dpi i1600 Print Head:1200dpi i3200 Print Head:1200dpi
Color Manage		ICC or density curve
Media Heating System		Powder & color fixing machine
Interface		RJ-45/LAN
RIP Software		Main top & PhotoPrint
Power Supply		220V/5A
Environment	Temperature	15℃ to 32℃
Environment	Humidity	5% to 40%
Printer Dimensions(With Stand)		L1314mmW622mmH664mm
Packing Dimensions		L1370mmW720mmH830mm
Printer Weight		135kg
Packing Weight		155kg
Folding Table		L2000mmW608mmH600mm
Packing Folding Table		L1085mmW700mmH600mm

Shaking Powder and Color Fix Machine
Model	A2 DTF Powder Shaker Machine
Media Width	0-450mm
Applicable Medium	Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control	Powder shake control, powder control, powder direction and volume control
Heating & Drying Function	The upper and lower double rows of high - efficiency heating lamps , drying, cold air fan function
Rewind Function	Automatic induction winding
Electrical Parameters	Rated Voltage: 220V Rated Current: 30A
Electrical Parameters	Rated Power: 6.6KW Power Consumption: 2.2KWh-5KWh
Packing Size & Weight	1440880850mm 164kg
Powder Shaker Size	1345795680mm

Working Process

Working Process

Design Pattern

Use photoshop, illustrator or other software to design your pattern.

Print Your Design

The printer parameters in the RIP software and use our printer and ink to print your pattern.

Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.

Required Accessories

Features

Feature of A2 DTF max
AINKJET DTF Super HIGH VOLUME DTF PRINTING SOLUTION

ENJOY PRINT DITF is carefully designed to reduce maintenance to a minimum. With popular RIPsoftware each print will be produced in a quality waybeyond any competition, but still ainkjet dtf every aspect of the printwill be optimized in order to make it cost effective.

• More Intelligent

• Low Maintenance

• High volume production

• Self preservation function

• More convenient operation

• With upgradeable options

Feature of A2 DTF max

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.

Sprinkler free installation

After you receive the printer, there is no necessary to install the print heads. After installing the ink and simple debugging. it can be printed directly.
Automatically moisturize online

To prevent the ink from clogging the heads moisturizer at regular intervals to keep the heads clean and moist. Online humidification system. which can keep the best working condition of the.
Upgraded Damper Heating

Upgraded Damper Heating, Independent control switch, heating on all sides to maintain nozzle status, improve ink fluency stable output
6colors & White ink circulation

Two type heads can optional F1080 or i1600-A1 , 4/6 color printing , to meet the different requirements of different customers,Comes with white ink circulation and stirring system to ensure the stability of the output.
Tension bar media feeding system

The intelligent tension bar film feeding system makes feeding more accurate and stable.
Double rows heating lamps

The upper and lower double rows of high - efficiency heating lamps , combined with a unique intelligent heating solution , can save 30% of power consumption.
THK mute guide

lmported high quality THK guide. Highly stable printing with low noise and with longer life ,the first choice for high-end inkjet printers.
Powder Control System

Better control the precise amount of powder, avoid unnecessary waste, reduce the number of powderreturn & powder pouring, reduce manual operation costs.
White ink circulation & Ink bottle automatic shaking

White ink bottle stirring device, auxiliary white ink circulation device, greatly improves ink fluency and increases the service life of the print heads.

Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.

✔ T-shirt ✔ Denim/Jeans
✔ Canvas ✔ Hoodies

✔ Backpacks. ✔ Lanyards

✔ Shoes ✔ Gift Bags

✔ Baseball Caps ✔ Fabric Gift Boxes
✔ Sweaters and more......

dtf printer inkjet printer film directly printing powder shaker printer digital dtf dtf film printing dtf powder shaker dtf printing dtg

DTF Accessories

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

/DTF PET Films

DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
/DTF Textile Prinitng Ink

DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
/DTF Hot Melt Powder

Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.

Additional Value

Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.
Inkjet Printer Starter Kit

Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
Dealer' s Team Training

Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
