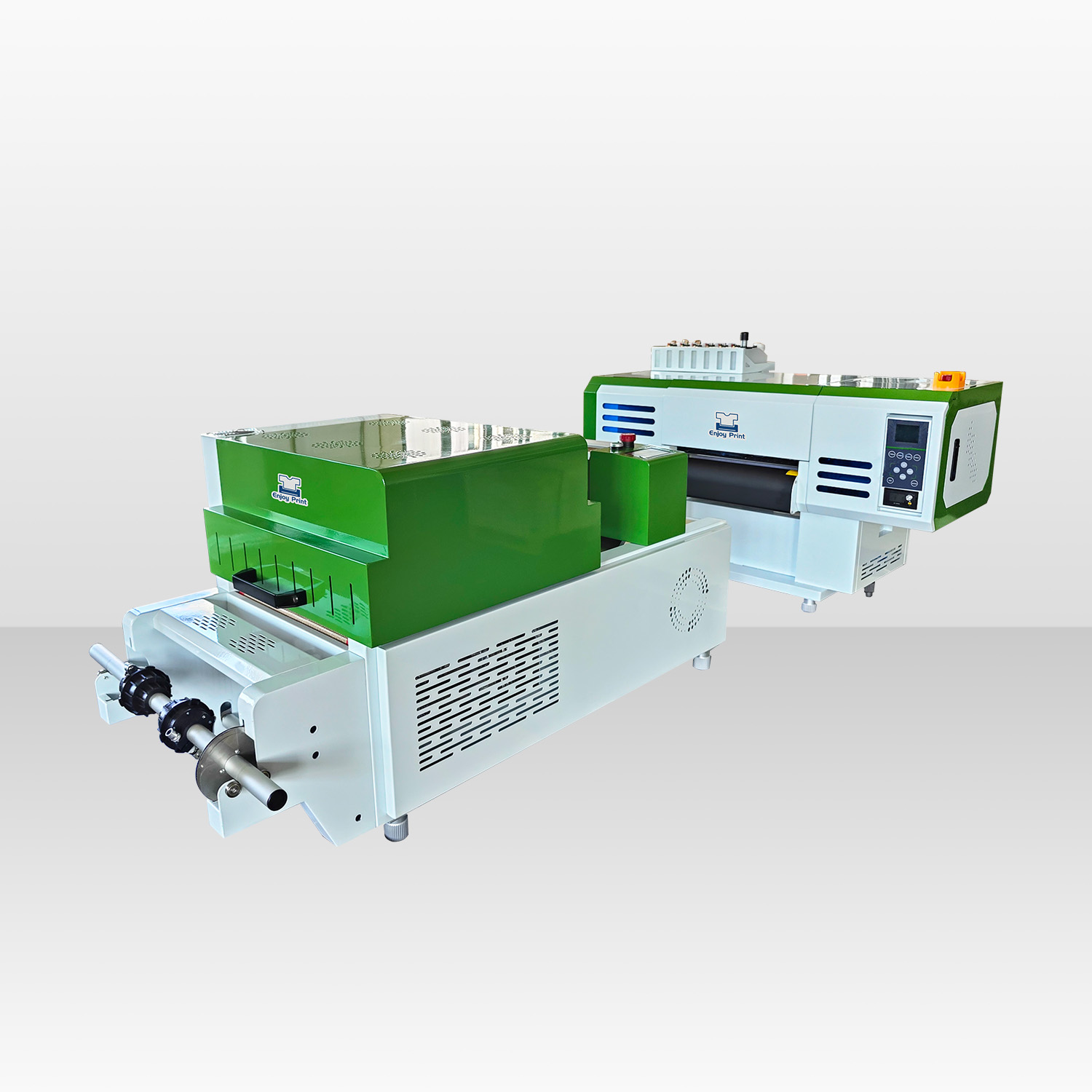

E-A3 Mini320 DTF Film Printing Machine A3 DTF Enjoyprint

Entry Level Direct to Film Comprehensive Solution (DTF)

Parameter
Print Head: 2*F1080 Print Heads
Max Print Size: ≤ 300 mm
Colors : CMYKLcLm+W
Max Printing Width : 300mm
Printing Ink ：Pigment Transfer Ink
Board : Hoson Board
Print speed：

360x1080dpi - 6pass 5sqm/h

360x1440dpi - 8pass 4sqm/h

Feature
Digital PET Film Printing Machine with Powder Shaking integrates vinyl powder coating and drying into one machine. When the film/vinyl is dried out, it can be used to transfer print onto the garment.

Availability:



Inquiry Add to Basket PDF Export

Model:
E-A3 MAX
Brand:
Enjoyprint

Printer Heads

Epson Inkjet Head F1080

Authorized Epson F1080 Printhead, specifically designed for DTF printers:

Enhanced Printing Performance: The F1080 / XP600 printhead is engineered by Epson to deliver exceptional print quality and vibrant colors. With its advanced technology and precise ink droplet placement, it enables sharp details and smooth gradients, resulting in professional-level prints.

Genuine Epson Product: Epson printheads ensure compatibility, reliability, and consistent performance. By using the authentic Epson F1080 / XP600 printhead, you can trust in its quality and compatibility with your DTF printer.

The Genuine Epson F1080 Printhead, designed to deliver exceptional print quality and reliable performance. Enjoy the benefits of using an authentic Epson product and unleash the full potential of your DTF printer for outstanding prints.

Product Specifications:
Product name	F1080
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead
WidthxDepthxHeight	84.9 x 57.2 x 46.2 mm
Number of Nozzle	1080
Nozzle pitch/nozzle row	1/180 inch
Nozzle rows	6 rows
Nozzle Resolution	180 npi /row 360 npi/2 rows
Max. number of colour inks	6 colours
Droplet volumes	4.5,9，20，40 pl (Multi mode)

* TWO*F1080 Print Heads Speed

720x1800dpi - 6pass 3.3 m²/h

720x1440dpi - 8pass 2.8 m²/h

Technical Specifications

T-shirt Digital Heat Transfer Printing Machine
Model		E-A3 DTF MAX DIRECTLY FILM PRINTING MACHINE
Print Head		2*F1080 Print Heads
Printing Technology		Micro Piezo Inkjet Printing
Acceptable Media	Width	330 mm
Acceptable Media	Material	PET Film
Printing Width		≤ 300 mm
Ink Cartridges	Type	Transfer Pigment Ink
Ink Cartridges	Color	CMYKLcLm+W
Printing accuracy		1440dpi
Color Manage		ICC or density curve
Media Heating System		Powder & color fixing machine
Interface		RJ-45/LAN
RIP Software		Main top & PhotoPrint
Power Supply		220V/5A
Environment	Temperature	15℃ to 32℃
Environment	Humidity	5% to 40%
Printer Dimensions(With Stand)		L1194W622mmH664mm
Packing Dimensions		L1250W720mmH830mm
Weight		132.5KG
Independent Folding Table		L1100W400H550mm

Shaking Powder and Color Fix Machine
Model	A3 DTF Powder Shaker Machine
Media Width	0-300mm
Applicable Medium	Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder Control	Powder shake control, powder control, powder direction and volume control
Heating & Drying Function	The upper and lower double rows of high - efficiency heating lamps , drying, cold air fan function
Rewind Function	Automatic induction winding
Electrical Parameters	Rated Voltage: 220V Rated Current: 30A
Electrical Parameters	Rated Power: 6.6KW Power Consumption: 2.2KWh-5KWh
Packing Size & Weight	1345* 675* 680mm GW:115KG
Powder Shaker Size	1440760850mm

Working Process

Working Process

Design Pattern

Use photoshop, illustrator or other software to design your pattern.

Print Your Design

The printer parameters in the RIP software and use our printer and ink to print your pattern.

Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.

Required Accessories

Features

Feature of A3 DTF max
AINKJET DTF Super HIGH VOLUME DTF PRINTING SOLUTION

ENJOY PRINT DITF is carefully designed to reduce maintenance to a minimum. With popular RIPsoftware each print will be produced in a quality waybeyond any competition, but still ainkjet dtf every aspect of the printwill be optimized in order to make it cost effective.

• More Intelligent

• Low Maintenance

• High volume production

• Self preservation function

• More convenient operation

• With upgradeable options

Feature of A3 DTF max

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.

Sprinkler free installation

After you receive the printer, there is no necessary to install the print heads. After installing the inkand simple debugging, it can be printed directly.
Automatically moisturize online

To prevent the ink from clogging the heads, moisturizer at regular intervals to keep the heads cleanand moist. Online humidification system. which can keep the best working condition of the.
Upgraded Damper Heating

Upgraded Damper Heating, Independent control switch, heating on all sides to maintain nozzle status, improve ink fluency, stable output.
6colors & White ink circulation

Comes with white ink circulation and stirring system to ensure the stability of the output
Tension bar media feeding system

The intelligent tension bar film feeding system makes feeding more accurate and stable.
Double rows heating lamps

The upper and lower double rows of high - efficiency heating lamps , combined with a unique intelligent heating solution , can save 30% of power consumption
THK mute guide

Imported high quality THK guide. Highly stable printing with low noise and with longer life ,the first choicefor high-end inkjet printers.
Powder Control System

Better control the precise amount of powder, avoid unnecessary waste, reduce the number of powderreturn & powder pouring, reduce manual operation costs.
White ink circulation & Ink bottle automatic shaking

White ink bottle stirring device, auxiliary white ink circulation device, greatly improves ink fluency and increases the service life of the print heads

Application

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.

✔ T-shirt ✔ Denim/Jeans
✔ Canvas ✔ Hoodies

✔ Backpacks. ✔ Lanyards

✔ Shoes ✔ Gift Bags

✔ Baseball Caps ✔ Fabric Gift Boxes
✔ Sweaters and more......

dtf printer inkjet printer film directly printing powder shaker printer digital dtf dtf film printing dtf powder shaker dtf printing dtg

DTF Accessories

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

/DTF PET Films

DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
/DTF Textile Prinitng Ink

DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
/DTF Hot Melt Powder

Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.

Additional Value

Year Warranty

Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
Online Technical Support

The expert team will serve you online and solve any problems you encounter for free.
Inkjet Printer Starter Kit

Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
Dealer' s Team Training

Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.
